產品特點
Machine Character:
BMT-AZ/1L-A型貼標機適用于酒類、食品、飲料、醫藥、日化等行業的圓形瓶非定位貼標。

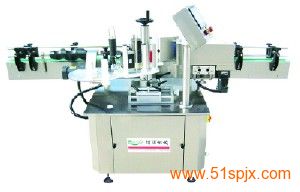

This BMT-AZ/1L-A labeling machine is applicable to label cylinder/round bottles with non-orienting for wine, food, drinks, pharmaceuticals and daily chemicals etc..
標站采用的非常靈敏的德國勞易測標紙傳感器配合高精度伺服電機控制出標。
In the labeling station is equipped with German LEUZE sensitive labels sensor and high precise servo motor to control the labels.
有瓶貼標，無瓶不貼標，出標準確，貼標平整美觀大方。
No bottle - no label, providing labels is precise, and labeling is perfect.
采用PLC控制器，配著名品牌觸摸顯示屏，操作界面簡易，工人稍加培訓即可操作。
Adopt PLC, and is equipped with famous touch-screen, the operation interface is easy. It is easy to operate.
設備無需壓縮空氣，機器結構簡單，緊湊，便于操作及維護。
The machine does not need the compressed air. The structure of machine is simple, compact. It is easy to be operated and maintain.
采用螺旋分瓶裝置，普通直徑的瓶型不需更換配件，進瓶速度可調，相較普通分瓶器大大提高設備速度及穩定性。
Using screw dividing bottle device. No change parts are required for different bottle sizes. The speed of the in-feed, relative to common dividing device, it can increase the speed and stability.
碳鋼機架經二次防銹處理，表層覆蓋一層優質304不銹鋼，設備整體穩定性好，經久耐用。
Carbon steel structure is handled by twice anti-rust, on the surface is covered by good AISI304 stainless steel. The whole machine has the good stability and can be durability.
技術參數
Technical Parameter
型號：BMT-AZ/1L-A
Model: BMT-AZ/1L-A
出標速度：60米/分
Production speed: 60m/min
貼標精度：±0.5mm(不計包材誤差)
Labeling tolerance: ±0.5mm(Regardless of the package material error)
適用標簽范圍：最大寬度200mm 最大高度 280mm
Wide range of labels: the Max. width 200mm, the Max. height 280mm
適用瓶直徑：Ø 50－150mm
Bottle diameter: Ø 50－150mm
適用標簽紙卷規格：卷筒芯內徑Ø 76.2mm 最大外徑Ø 350mm
Labels roll dia.: Inner dia.76.2mm, Max.350mm
設備外形尺寸：L2000 ×W900 ×H1300mm
Outline size: L2000 ×W900 ×H1300mm
設備重量：約300 kg
Weight: about 300 kg
電源功率：380V/50HZ 1.15kw
Power supply: 380V/50HZ 1.15kw |
